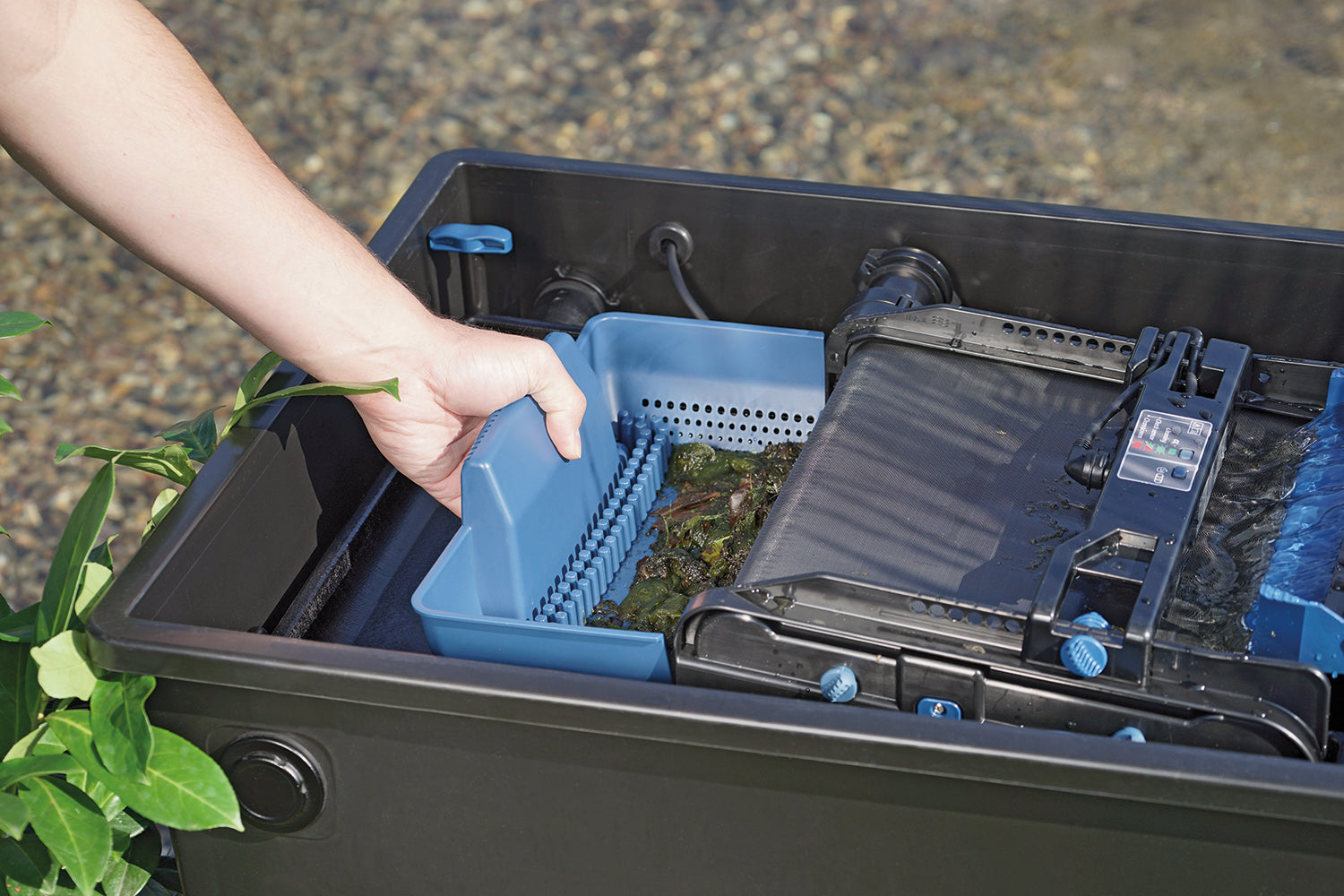

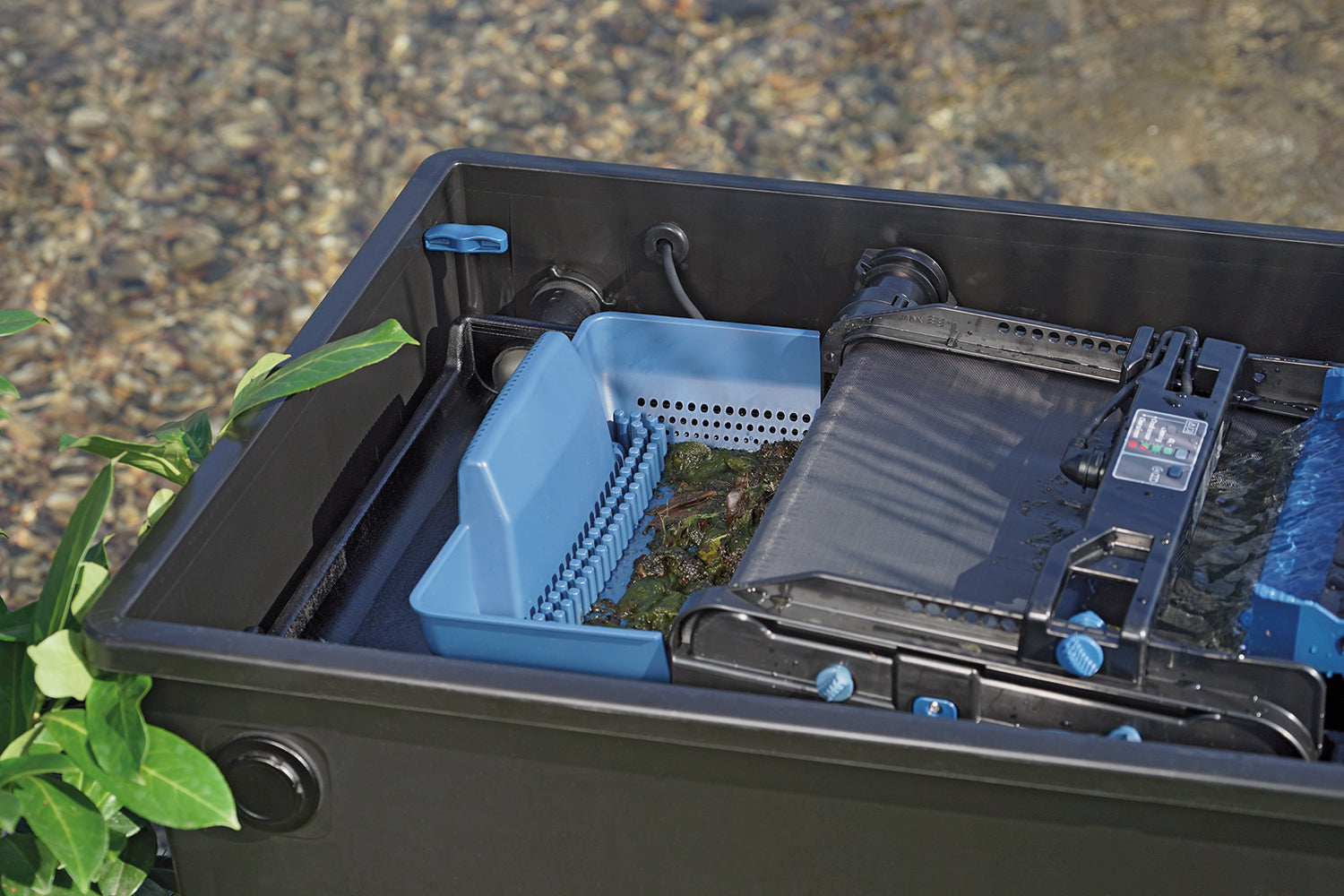

This compact and efficient gravity outlet, flow-through filter box revolutionizes pond maintenance with its innovative automated pre-filter conveyor that screens out larger debris. The porous belt on the conveyor transports debris to a spacious collection basket for easy periodic emptying. The Screendrive mechanism, driven by a specialized cleaning sensor, automatically controls the belt functions based on dirt levels, allowing only small particles to pass through to the biological/mechanical filter foams. These foams effectively trap and break down organic waste, significantly reducing the biological load and maintenance requirements.

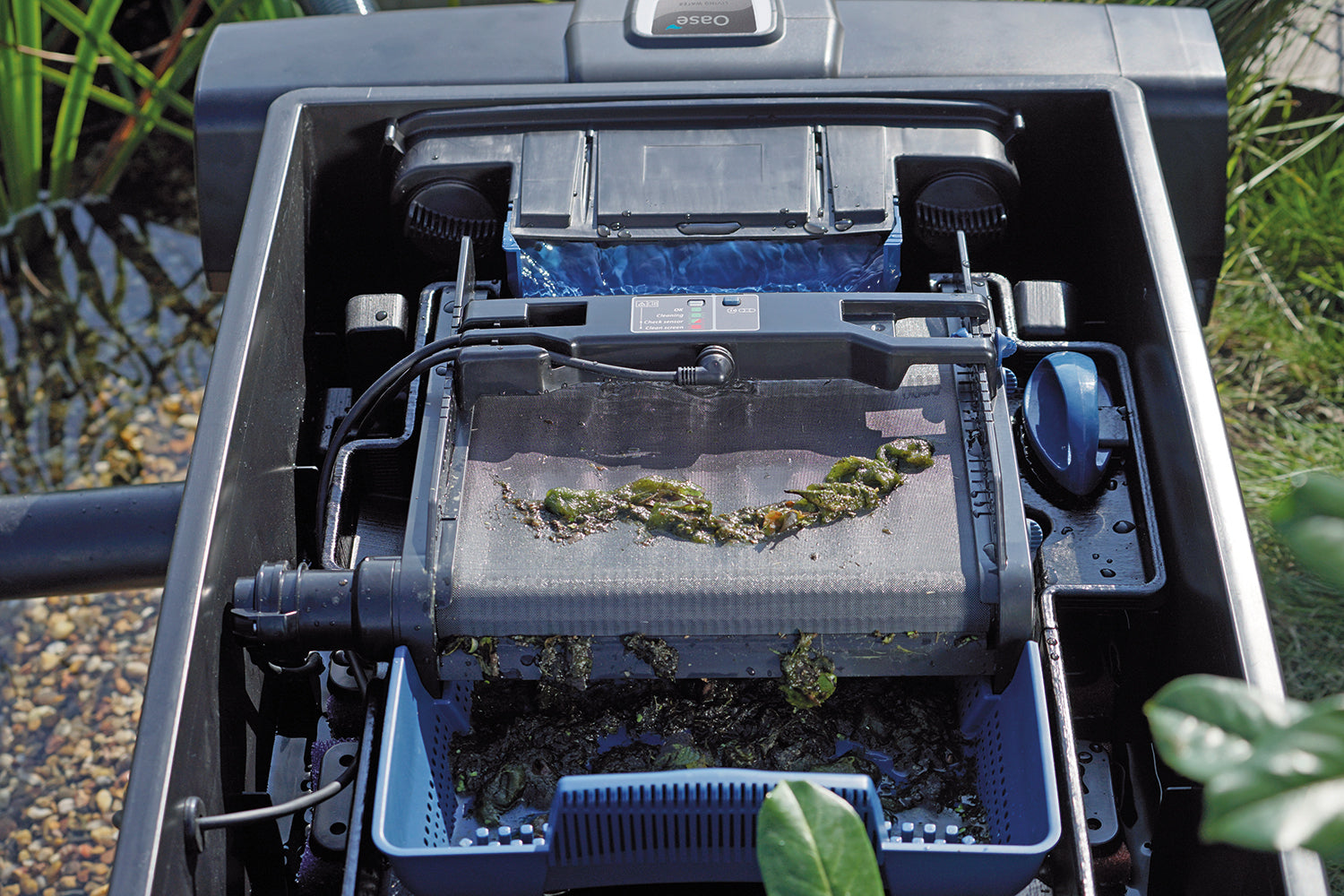

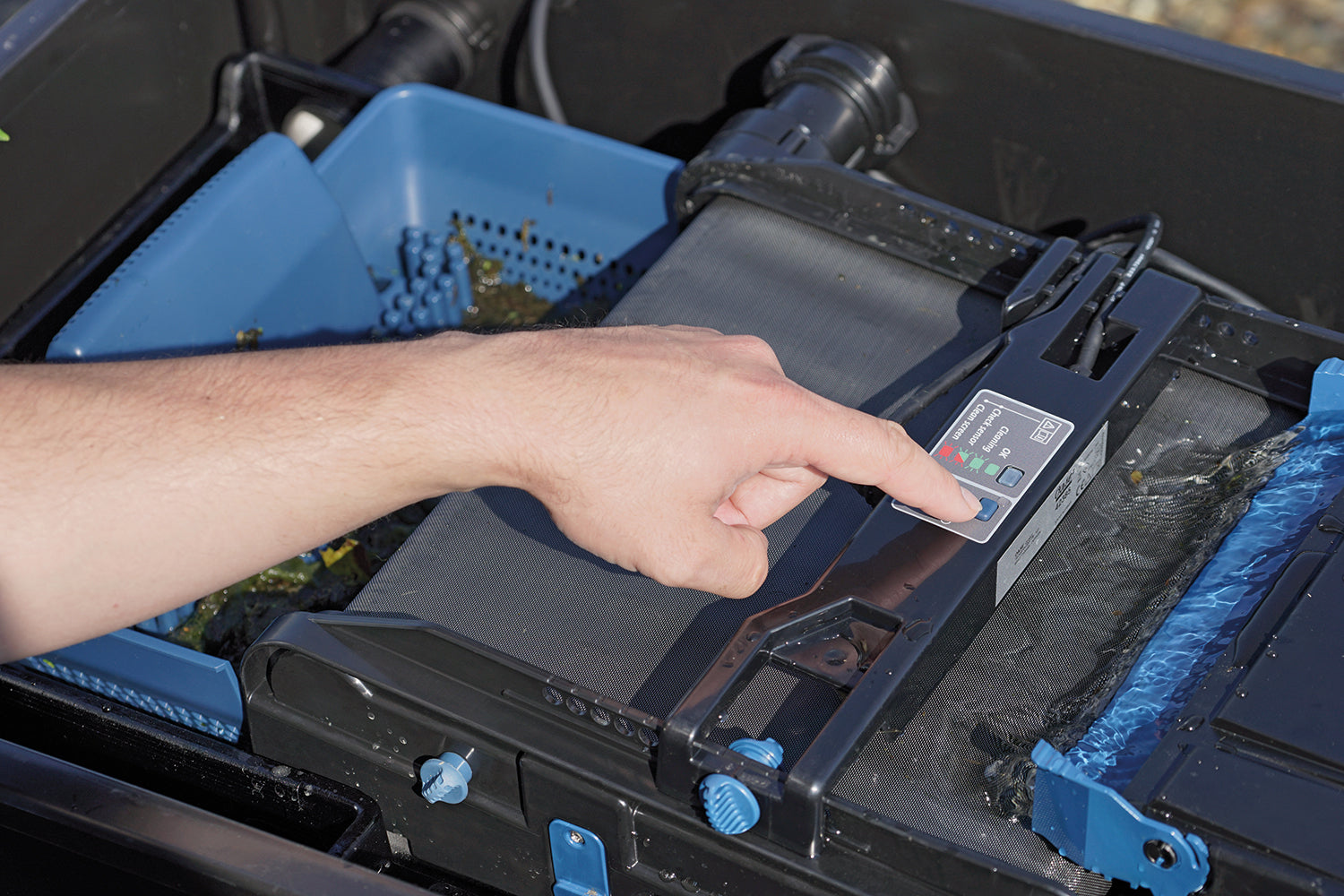

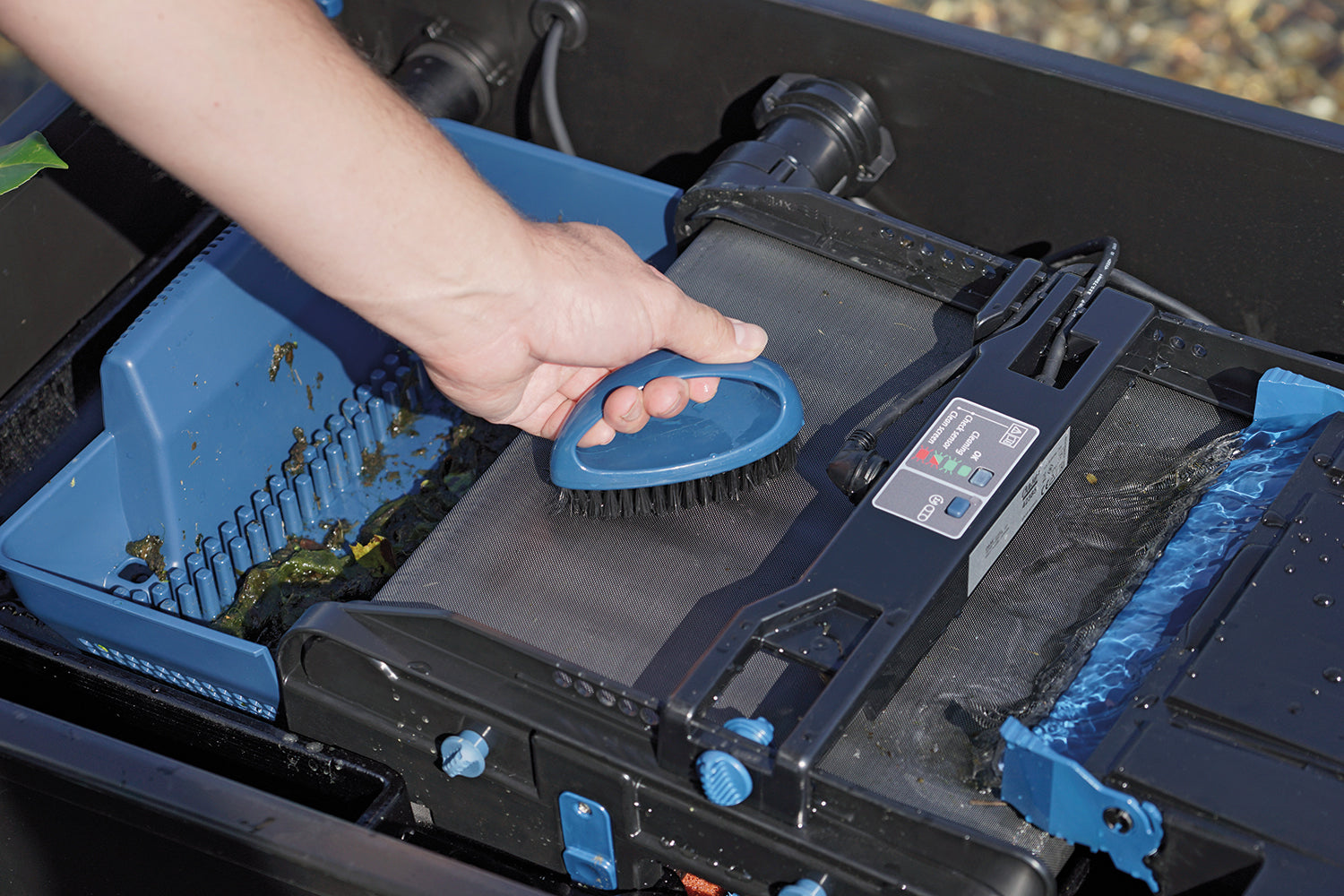

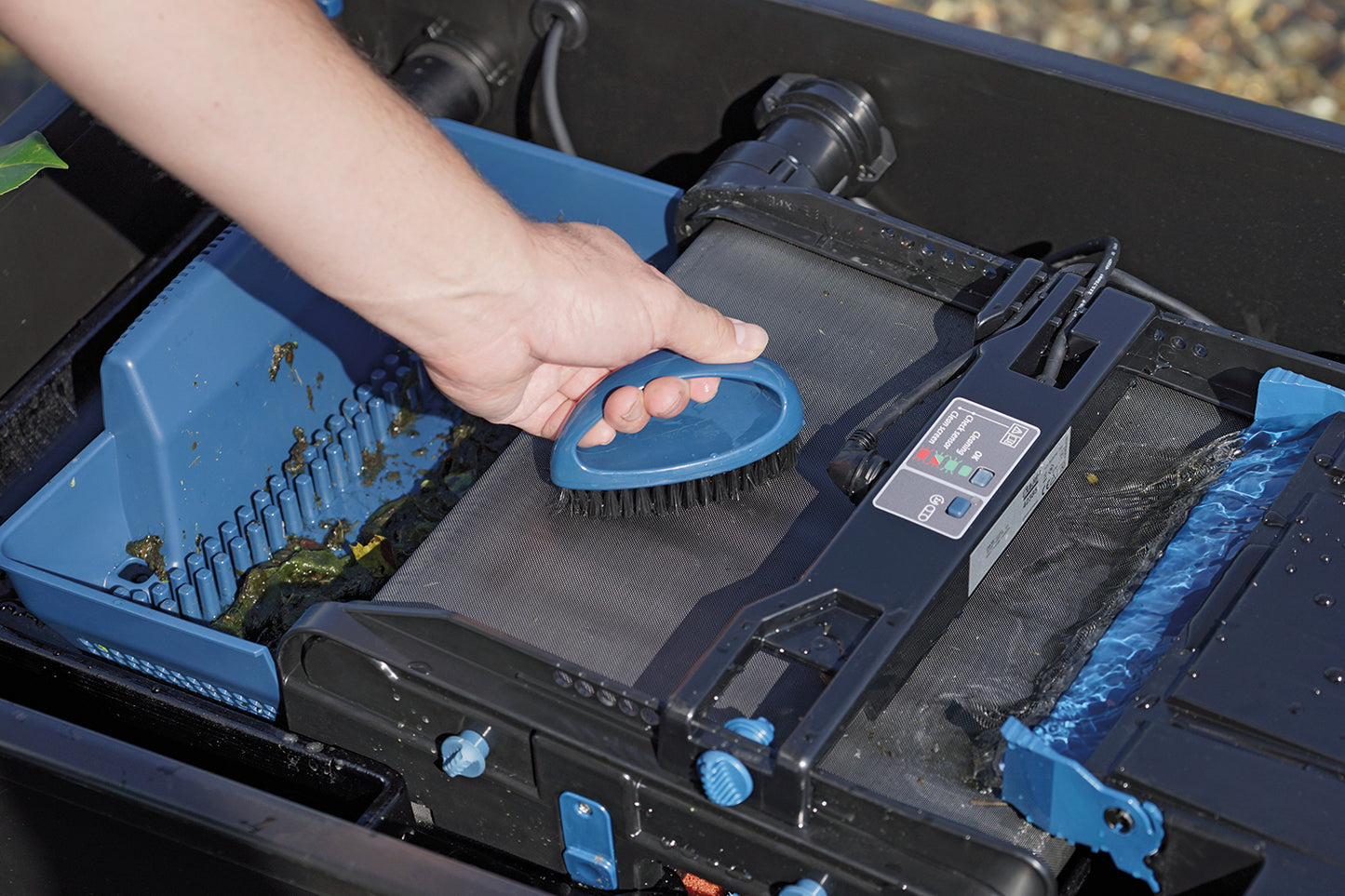

Water enters the filter through a flow spreader onto a 300-micron fabric belt, which strains out solid waste particles. When the belt becomes soiled, a sensor activates a motor to start a cleaning cycle, transferring waste to a collection tray below. The control display offers instant cleaning cycles at the press of a button, with an adjustable waste sensor for personalized cleaning intervals. A supplied cleaning brush keeps the fabric screen free of dirt.

After the mechanical straining process, water progresses through eight large filter sponges of varying coarseness—blue for rough, violet for medium fine, and red for very fine. These sponges provide ample surface area for aerobic bacteria to thrive and break down soluble waste pollutants. Cleaning the filter foams is made easy with a compression handle that releases organic waste buildup. Finally, water passes through cartridges containing 3.5 kg of granulate media (zeolite), binding unwanted nutrients and trace ammonia before returning to the pond. This system ensures smart, efficient, and hassle-free pond filtration and water quality maintenance, ideal for ornamental, Goldfish, and Koi ponds.

Key Features:

• First class and powerful individual products, perfectly matched
• Coarse debris extractor protects the filter sponges and extends the service life of the filter
• Settlement surface for micro-organisms for decomposition of pollutants and nutrients
• Clear and healthy pond water with minimum maintenance requirements
• Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
• Continuous belt filter at an affordable price

Benefits:

GUARANTEED: Includes OASE clear water guarantee
LOW MAINTENANCE: Coarse dirt is removed before it enters the filter
SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check

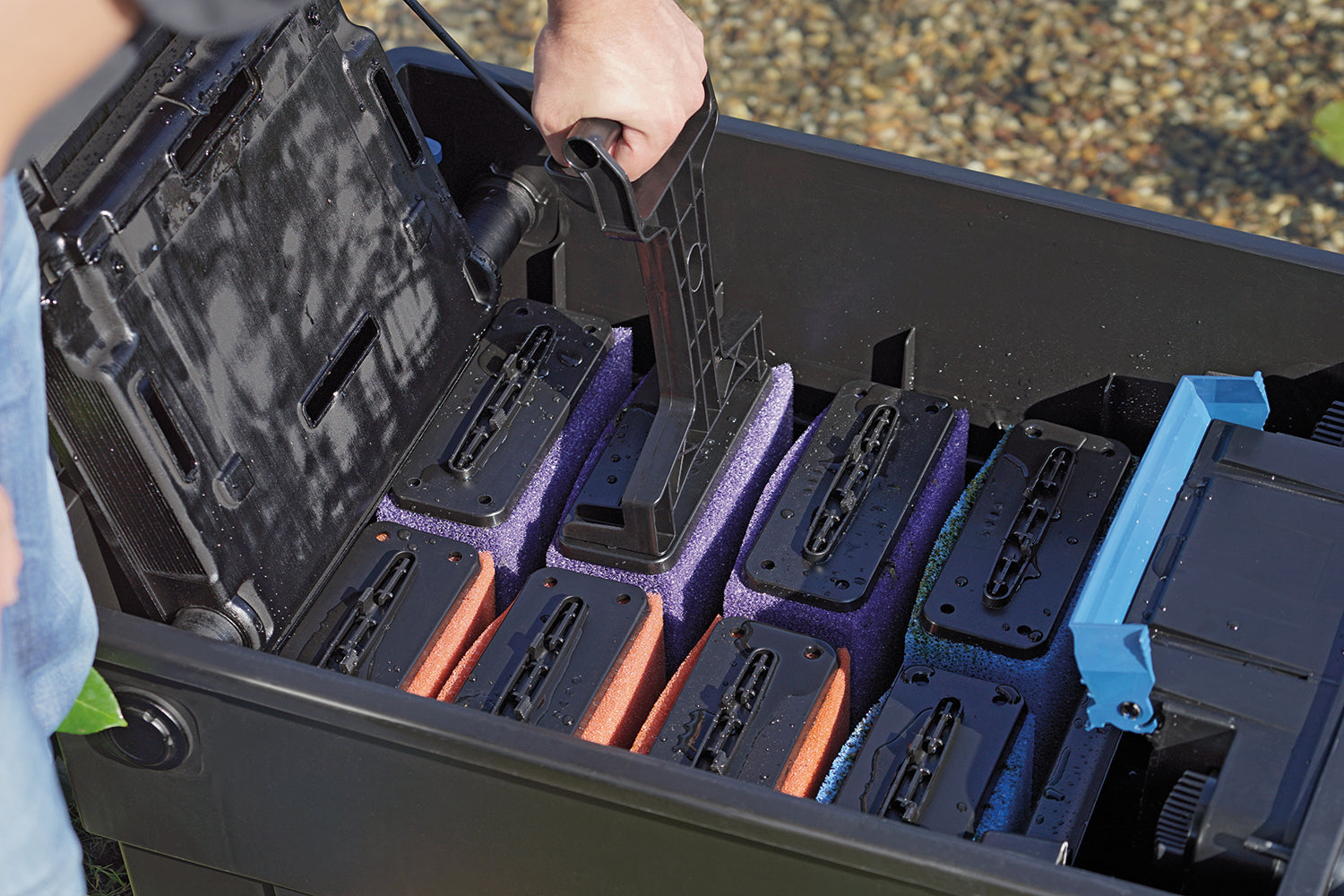

CONVENIENT: Filter sponges can be cleaned directly in the filter
CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system
SMART COMBO: Different filter media for optimal development of filter biology
EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)
SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps
GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers
DOESN'T CLOG: Uniform water distribution on the filter belt

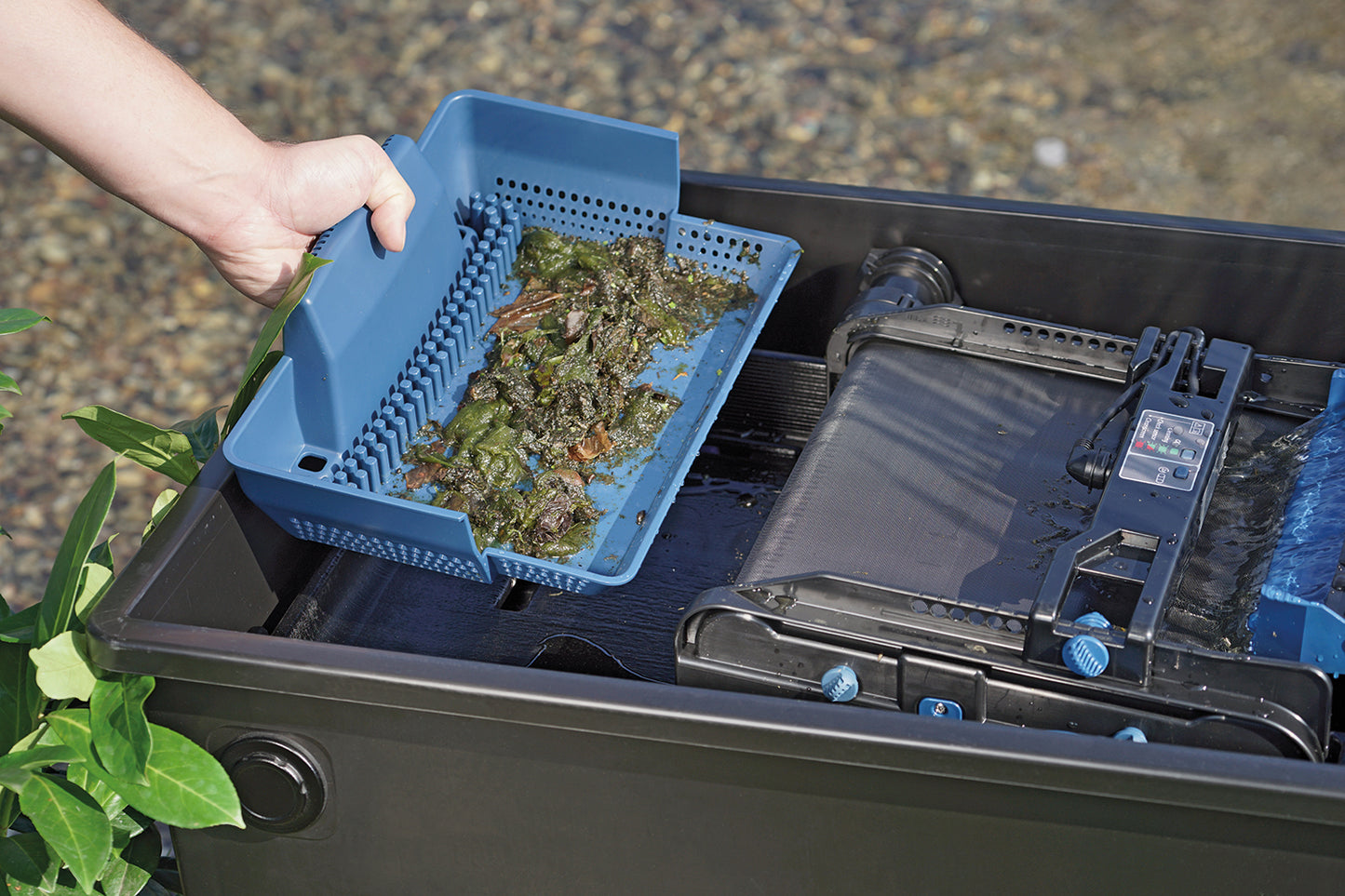

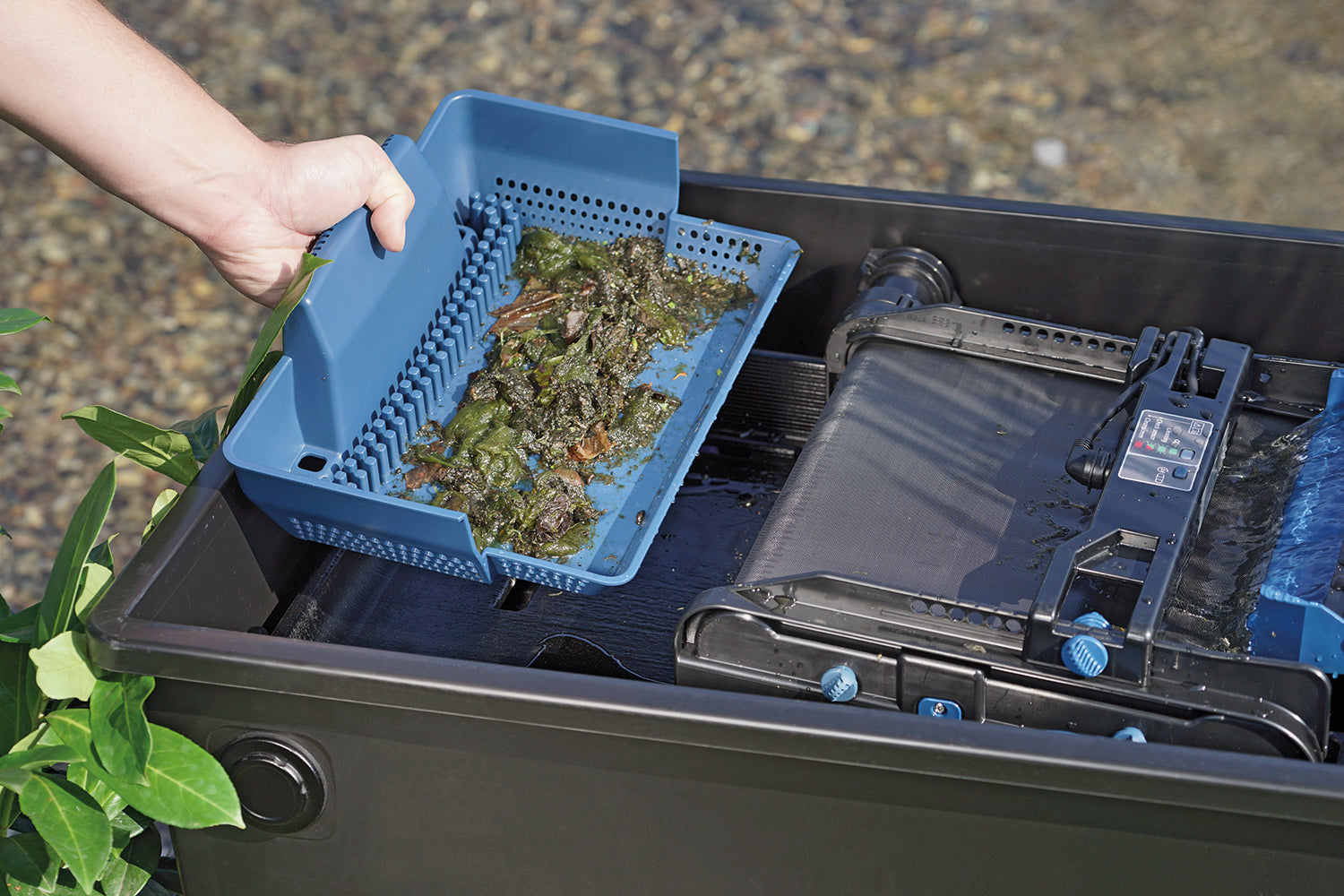

PRACTICAL: Large-volume dirt basket with easy cleaning

Specifications:

Dimensions (L x W x H) mm: 788 x 590 x 445
Min. Flow Rate: 4,000 lph
Max. Flow Rate: 9,000 lph
Max. Pond Size: 40,000l
Pond Size with Fish Stock: 20,000l
Pond Size with Koi: 10,000l
Cable length: 2m + 5m
Number of filter Foams: 8
UV Connection: Oase Bitron 36w -110w & Bitron Eco 120 – 240w UV Clarifiers
Guarantee: 3 years
